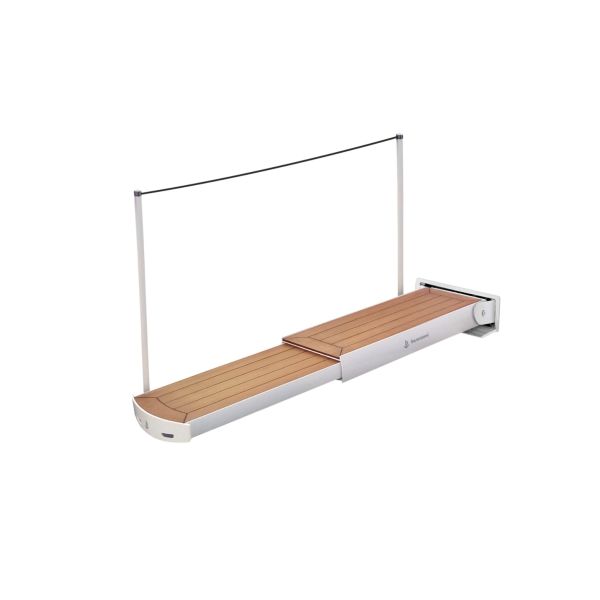

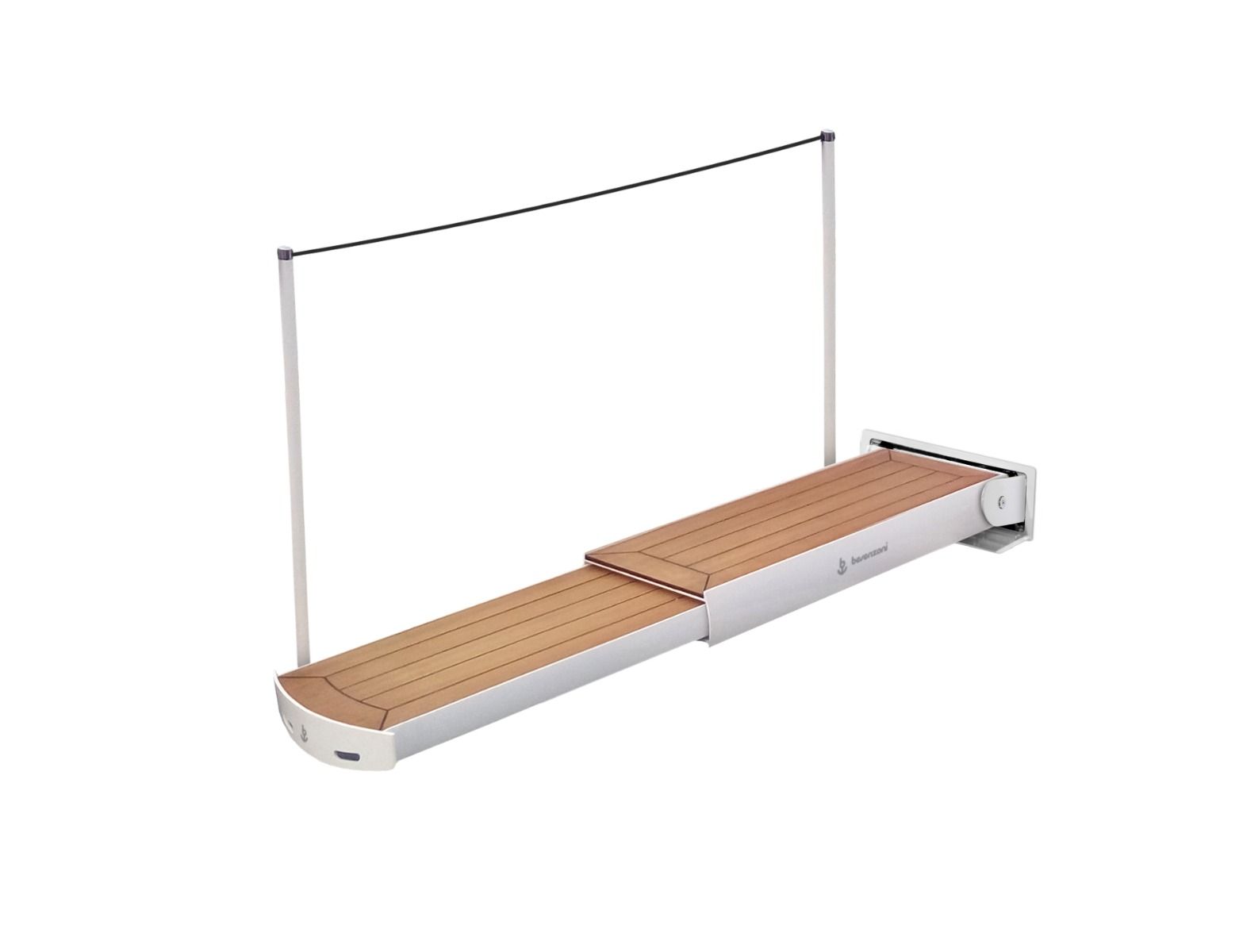

PI 691 Super Compatta
The Besenzoni 'Super Compatta' hydraulic gangway is exactly as described by its Italian name: super compact.
The product has been designed for application on small, high end craft or sailing boats where installation of a traditional hydraulic passerelle is not usually possible due to the cassette size. The PI691 Super Compatta has a much reduced cassette height and length at only 1205mm long and 150mm tall.
The product is available in two main versions lifting either 100Kg or 150Kg. Options include polished stanless steel finish or powder coated in a selection of RAL colours. The passerelle can also be produced with the manual stanchions on either the port or starboard side. An iroko timber walkway completes the look.
- 12 or 24 Vdc
- 100Kg or 150Kg capacity
- Port or starboard manual stanchions
- Polished stainless steel or powder coated RAL finish (powder coated cassette)
- Radio remote control as standard
- Compatible with BUC Bluetooth control for smartphone operation
SKU
PI691.1500
| Weight (kg) | 150.000000 |
|---|---|
| Maximum Extension (mm) | 1445.00 |
| First Stage Width (mm) | 410.00 |
| Second Stage Width (mm) | 390.00 |
| Raise Angle | 17° |
| Cassette Length (mm) | 1205.00 |
| Cassette Height (mm) | 150.00 |
| Cassette Width (mm) | 500.00 |
| Stanchions (N°) | 2 |
| Operation Type | Hydraulic |
